SOLAR ASSET TRACKER

SAT-04


Waterproof

Icon-Easy Installation.png

Easy Installation


Solar Panel


Motion Detection


Low Battery Alarm


Removal Alert


Data Security(MD5/AES)


Light Sensor


AGPS Support


Screw or Magnet Mounting

Standby Time (2 hours active tracking per day)

10 Min Reporting

5 Min Reporting

1 Min Reporting

85 Days

45 Days

18 Days

Specifications

General Specifications

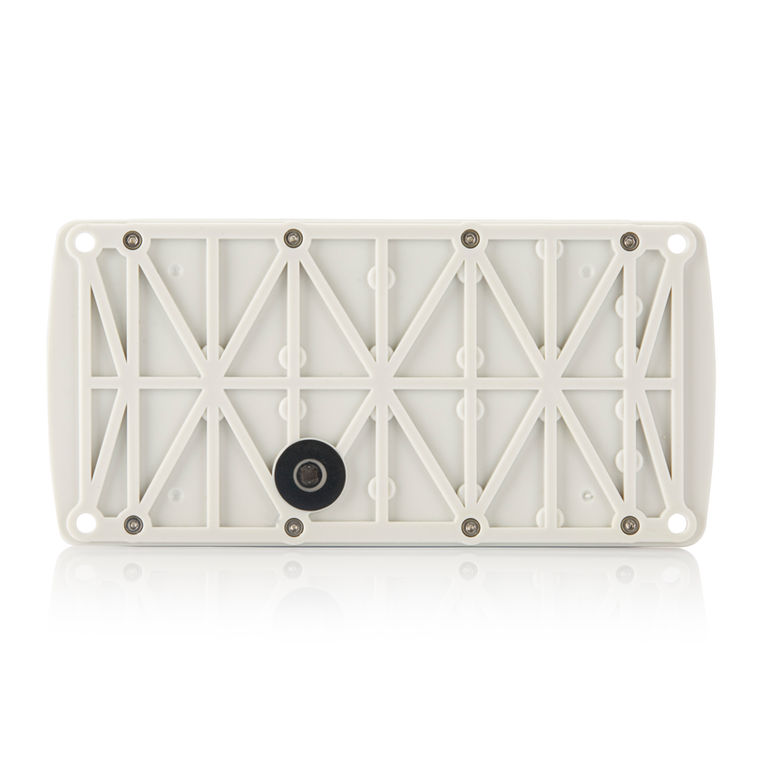

Mounting

Magnet/Screw

Operating Temperature

-20°C ~ +60°C (-4°F ~ 140°F)

Solar Panel

For charging the tracker battery

Data Communication

Magnetic USB Cable

(Recommend using 5V 1A Adapter, 10 Hours Charging)

Standby Time

(Without considering solar charging, 2 hours active

traking per day)

10 minutes reporting: 85 days

5 minutes reporting: 45 Days

1 minute reporting: 18 Days

Battery

Rechargable Li-Polymer 4800 mAh/3.7V

Weight

210g

Dimensions

2.7in x 5.6in x 0.97in

Waterproof

IP67

Interfaces

Temperature Sensor

1 Temperature Sensor

Light Sensor

2 light sensors (front and back)

Physical Power Switch

1

FOTA

Yes

Indicator LED

Network, GNSS and Battery level

Network, GNSS Antenna

Internal only

Charging and Data Transmission

4 Pin port with magnet

Air Interface Protocol

Removal Alarm

Sending alarm when the light sensor detecting the light changing

Motion Detection

Motion alarm based on internal 3-axix accelerometer

SOS/Emergency Alarm

SOS alarm via pressing function button

Power On/Off Report

Report when the device is powerd on and off

Low Power Alarm

Sending alarm when battery is low

Geo-fence

Support up to 64 internal geo-fence regions

Scheduled Timing Report

Report position and status at present intervals

Protocol Check & Encryption Support

MD5/AES256

Transmit Protocol

TCP, UDP, MQTT, SMS

GNSS Specifications

Standalone TTFF

Cold Start: < 29s

Warm start: < 27s

Hot Start: < 1s

Position Accuracy

Autonomous <2m

Sensitivity

Cold Start: -149 dBm

Tracking: -163 dBm

Receiver Type

33 tracking / 99 acquisitions - channel GNSS receiver

Parallel GNSS

GPS+Glonass+Galileo+Beidou

GNSS Chipet

Qualcomm Gen 8C GNSS receiver
